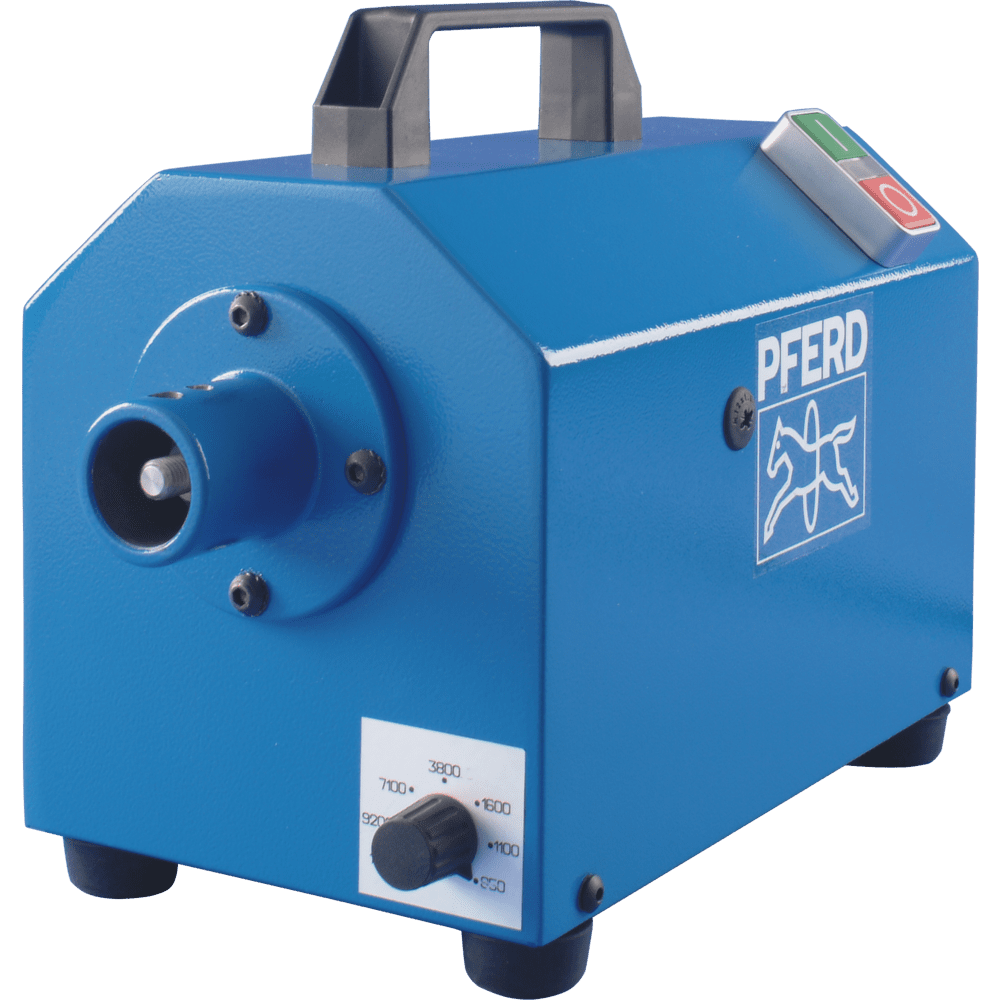

PFERD TOOLS Flexibilné hriadeľové stroje MMEW 11/120 230 V

The multi-speed machine with stepless regulation is powerful and is suitable for heavy-duty use. 2.5 m power cable, 2 keys.

Technical details

• Power consumption: 1100 Watt
• Power output: 800 Watt
• Rotational speed range, from: 800 RPM
• Rotational speed range, to: 12000 RPM
• Voltage, from: 230 Volt
• Connection coupling [DIN]: 10
• Width, metric: 160 mm
• Net weight: 7.9 kg
• Height: 180 mm
• Length, metric: 270 mm

Product benefits

• Advantages:
  • Stepless rotational speed regulation.
  • Overload protection.
  • Smooth start-up to protect people, tools and the drive.
  • Restart protection in case of power failure (USP).
  • Very little noise generated.
  • Lockable on-off switch.
  • Machine with robust design for heavy-duty use.

Ordering information

• Ordering notes: The drive is supplied without flexible shaft, please order separately. Hanging design, on request. Version with foot switch, on request.

Safety notes

• Safety notes: Grinding and polishing tools with diameter ≥ 60 mm are not suitable for continuous use with the Mini-Mammoth Electronic.

PFERDVALUE

• PFERD TOOLS ERGONOMICS: PFERD TOOLS ERGONOMICS recommends the drive to sustainably reduce the noise produced during use.
• PFERD TOOLS EFFICIENCY: PFERD TOOLS EFFICIENCY recommends the drive for working for long periods with low levels of fatigue, whilst saving resources and achieving perfect results as quickly as possible.

Logistic details

• Customs tariff no.: 85014080
• Country of origin: DE
• Volume (Packaging unit): 216000 CCM
• Gross weight (Piece): 8.935 kg
• Length (Packaging unit): 600 mm
• Width (Packaging unit): 600 mm
• Height (Packaging unit): 600 mm
