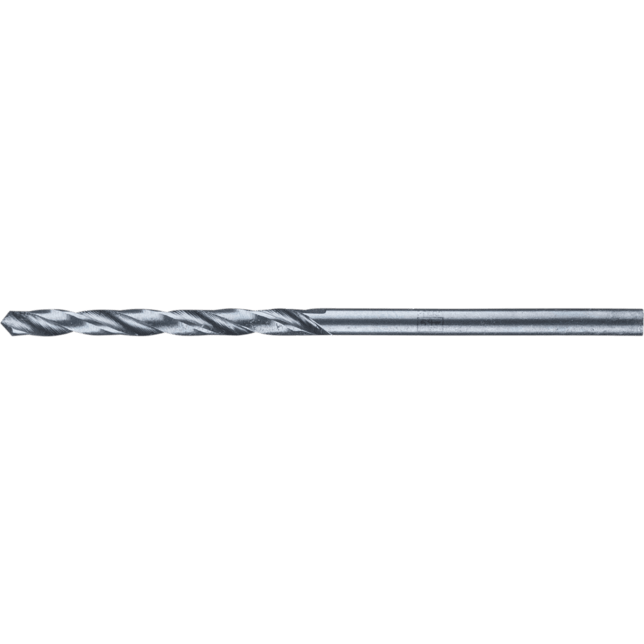

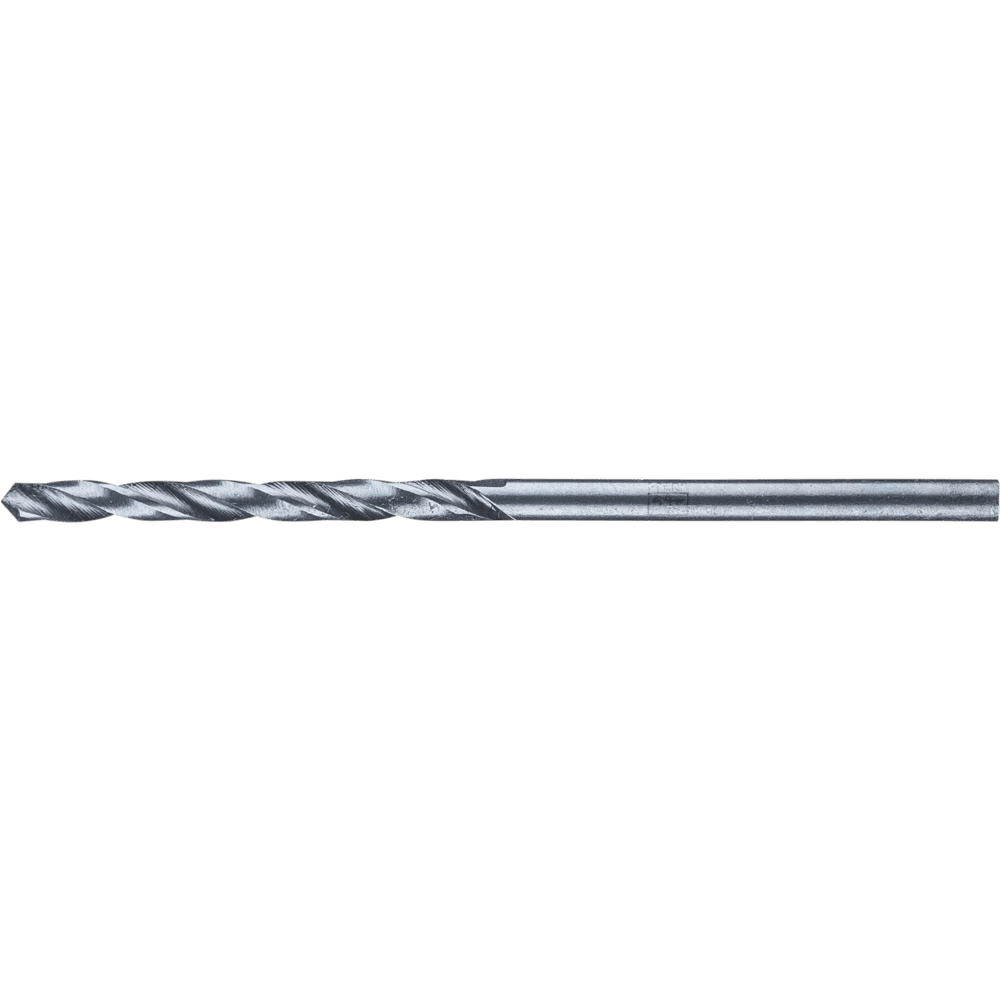

PFERD TOOLS Vrtacie a ponorné nástroje SPB DIN 338 HSSG N 2,6 OCEĽ

Drilling tools with cross grinding for industrial uses. Fully ground, right-hand turning versions that produce precise drill holes thanks to their high concentricity and exact centring. PFERD TOOLS offers spiral drills in the STEEL (118 ° point angle) and INOX (135 ° point angle) versions. High-performance drilling tools in the STEEL in HSSG (M2) version for industrial uses. Fully ground right-hand turning version with cross grinding that produces precise drill holes thanks to their high concentricity and exact centring.

Technical details

• PFERD TOOLS type: SPB DIN338 HSSG N 2,6 STEEL
• RPM from, grey cast iron, white cast iron: 1230 RPM
• RPM from, hard non-ferrous metals: 3070 RPM
• RPM from, soft non-ferrous metals: 3680 RPM
• RPM from, steels over 700 N/mm²: 2450 RPM
• RPM from, steels up to 700 N/mm²: 3070 RPM
• RPM from, thermoplastics, fibre-reinforced plastics (GRP/CRP): 1840 RPM
• RPM to, grey cast iron, white cast iron: 3070 RPM
• RPM to, hard non-ferrous metals: 6130 RPM
• RPM to, soft non-ferrous metals: 7350 RPM
• RPM to, steels over 700 N/mm²: 3070 RPM
• RPM to, steels up to 700 N/mm²: 4290 RPM
• RPM to, thermoplastics, fibre-reinforced plastics (GRP/CRP): 4900 RPM
• Version: STEEL
• New to the range: 2024
• EAN pcs.: 4007220481899
• Diameter: 2.6 mm
• Angle: 118 °
• Spiral angle, from: 25 °
• Spiral angle, to: 30 °
• Flute length: 30 mm
• Length, total: 57 mm

Product benefits

• Advantages:
  • Very good chip removal.
  • High concentricity.
  • Exact centring and low feed force thanks to cross grinding.
  • Suitable for general use on steel, cast steel, grey cast iron, annealed cast iron, bronze, brass, aluminium.
  • Easy centring.
  • Long tool life.

Application Recommendations

• Recommendations for use:
  • Observe the recommended rotational speeds.
  • When drilling metals, use a high-quality cutting oil or cooling lubricant, if possible. This facilitates smooth running and extends the drill tool life. Exception: when working on aluminium, use kerosene instead of cutting oil.
  • When working on stainless steel (INOX), remove any particles that break away from the workpiece in order to avoid corrosion. Clean the workpiece chemically or mechanically (etching/polishing, etc.).

Materials

• Materials that can be worked:
  • Aluminium
  • Annealed cast iron
  • Black annealed cast iron (GTS, GJMB)
  • Brass
  • Bronze
  • Case-hardened steels
  • Cast iron
  • Cast steel
  • Casting scale
  • Chipboard
  • Copper
  • Ductile cast iron
  • Thermosetting plastics
  • Elastomers
  • Fibre-reinforced thermosetting plastics (GRP, CRP)
  • Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content ≤ 40 %
  • Fibre-reinforced thermosetting plastics (GRP, CRP) with a fibre content > 40 %
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hard non-ferrous metal
  • Hardwood
  • Other non-ferrous metals
  • Other
  • Plastics
  • Roller-bearing and ball-bearing steels
  • Soft non-ferrous metal
  • Soft titanium alloys (tensile strength 500 N/mm²)
  • Soft wood
  • Steel
  • Steel, cast steel
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Steels over 700 N/mm² (> 220 HB)
  • Steels up to 700 N/mm² (< 220 HB)
  • Thermoplastics
  • Titanium
  • Titanium alloys
  • Tool steels
  • White annealed cast iron (GTW, GJMW)
  • Wood
  • Zinc

Applications

• Applications: Drilling

Drive types

• Drive types:
  • Column drill
  • Tool machine
  • Power drill
  • Robot
  • Stationary machines

Safety notes

• Safety notes:
  • Wear eye protection!
  • Follow the safety instructions!

Logistic details

• Customs tariff no.: 82075060
• Country of origin: CN
• Volume (Packaging unit): 24.3 CCM
• Gross weight (Piece): 0.002 kg
• Length (Packaging unit): 75 mm
• Width (Packaging unit): 18 mm
• Height (Packaging unit): 18 mm

Classifications

• ECLASS 5.1.4: 21010101
• ECLASS 7.1: 21180101
• ECLASS 8.1: 21180101
• ECLASS 9.1: 21180101
• ECLASS 10.1: 21180101
• ECLASS 11.1: 21180101
• ECLASS 12.0: 21180101
• ECLASS 13.0: 21180101
• ECLASS 14.0: 21180101
• ECLASS 15.0: 21180101
• ETIM 8.0: EC000945
• ETIM 9.0: EC000945
• ETIM 10.0: EC000945
• UNSPSC 25.0901: 27110000
