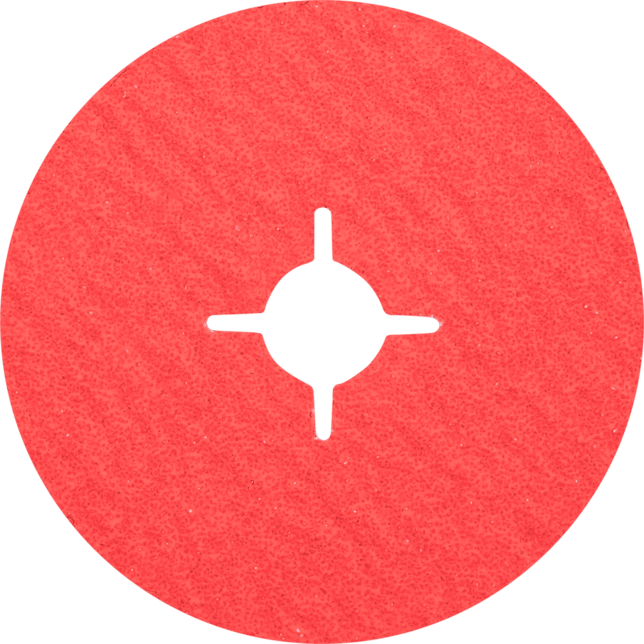

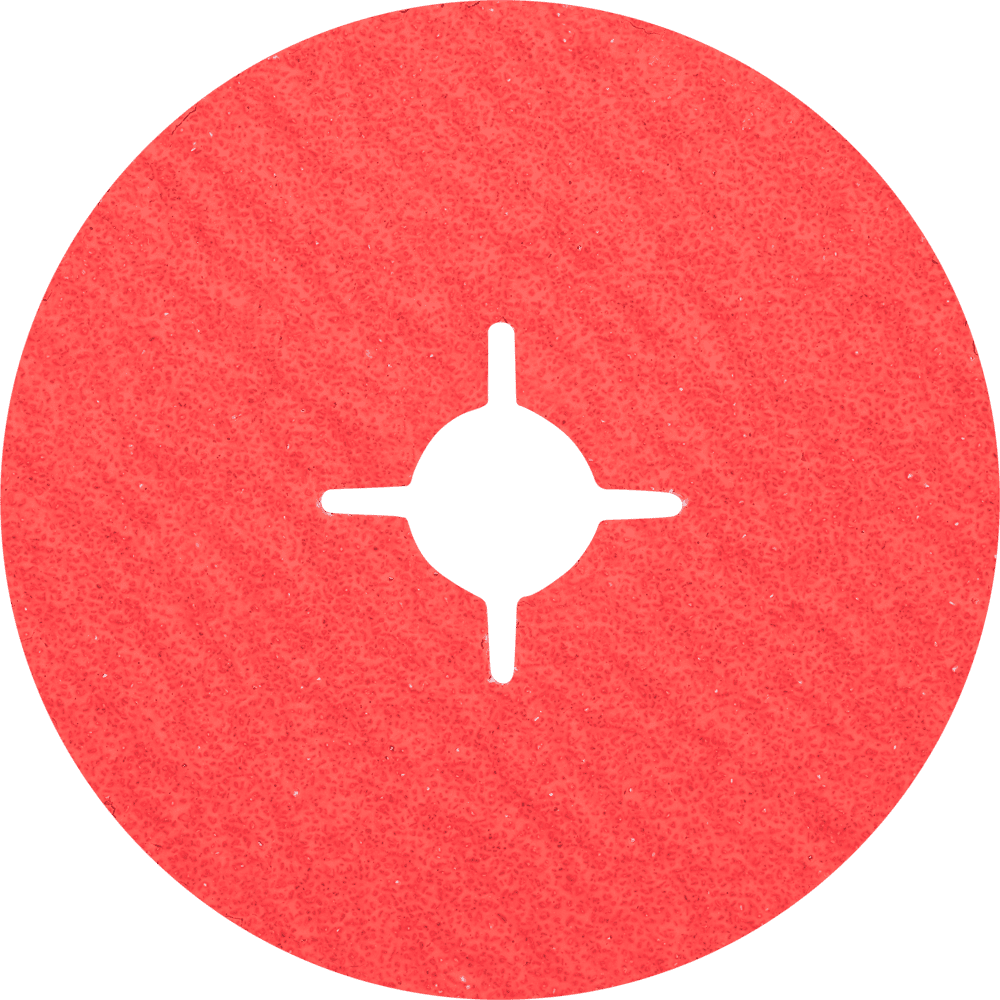

PFERD TOOLS vláknové kotúče FS 125-22 CO-COOL 36

PFERD TOOLS fibre discs are manufactured in accordance with ISO 16057 in shape A1 version F under the designation "vulcanized fibre disc". For aggressive grinding with maximum stock removal rate on hard materials which do not conduct heat well. Consistently high performance due to self-sharpening ceramic oxide grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent clogging and result in cooler grinding.

Technical details

• Max. RPM: 12200 RPM
• EAN pcs.: 4007220310182
• Abrasive: CO-COOL
• Dia. hole: 22 mm
• Dia. external, metric: 125 mm
• Grit size: 36

Product benefits

• Advantages:
  • High economic efficiency thanks to long tool life and very high stock removal rate.
  • Consistent surface finish thanks to high-quality abrasives.
  • Highly flexible, enabling optimal adjustment to the contour.

Application Recommendations

• Recommendations for use:

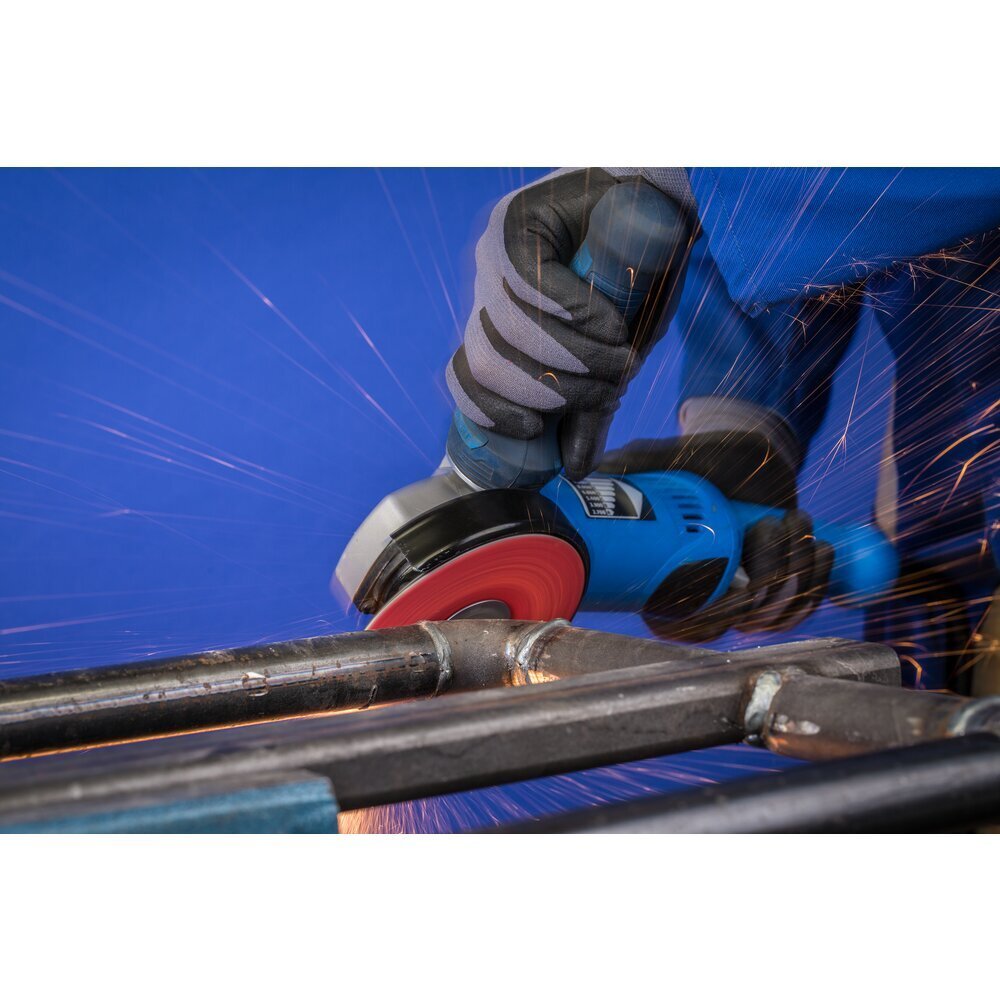

  • Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Materials

• Materials that can be worked:
  • Annealed cast iron
  • Bronze
  • Cobalt-based alloys
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Titanium

Applications

• Applications:
  • Deburring
  • Step-by-step fine grinding
  • Leveling
  • Surface work
  • Work on weld seams
  • Working on edges

Drive types

• Drive types:
  • Angle grinder
  • Cordless angle grinder

Ordering information

• Ordering notes: Please order backing pad separately.

Safety notes

• Safety notes:
  • The maximum permitted peripheral speed is 80 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Logistic details

• Customs tariff no.: 68053000
• Country of origin: DE
• Volume (Packaging unit): 1023 CCM
• Gross weight (Piece): 0.04 kg
• Length (Packaging unit): 134 mm
• Width (Packaging unit): 134 mm
• Height (Packaging unit): 57 mm

Classifications

• ECLASS 5.1.4: 21011318
• ECLASS 7.1: 21011318
• ECLASS 8.1: 21011318
• ECLASS 9.1: 21011318
• ECLASS 10.1: 21011318
• ECLASS 11.1: 21011318
• ECLASS 12.0: 21011318
• ECLASS 13.0: 21011318
• ECLASS 14.0: 21011318
• ECLASS 15.0: 21011318
• ETIM 8.0: EC000173
• ETIM 9.0: EC000173
• ETIM 10.0: EC004958
• UNSPSC 25.0901: 27110000
