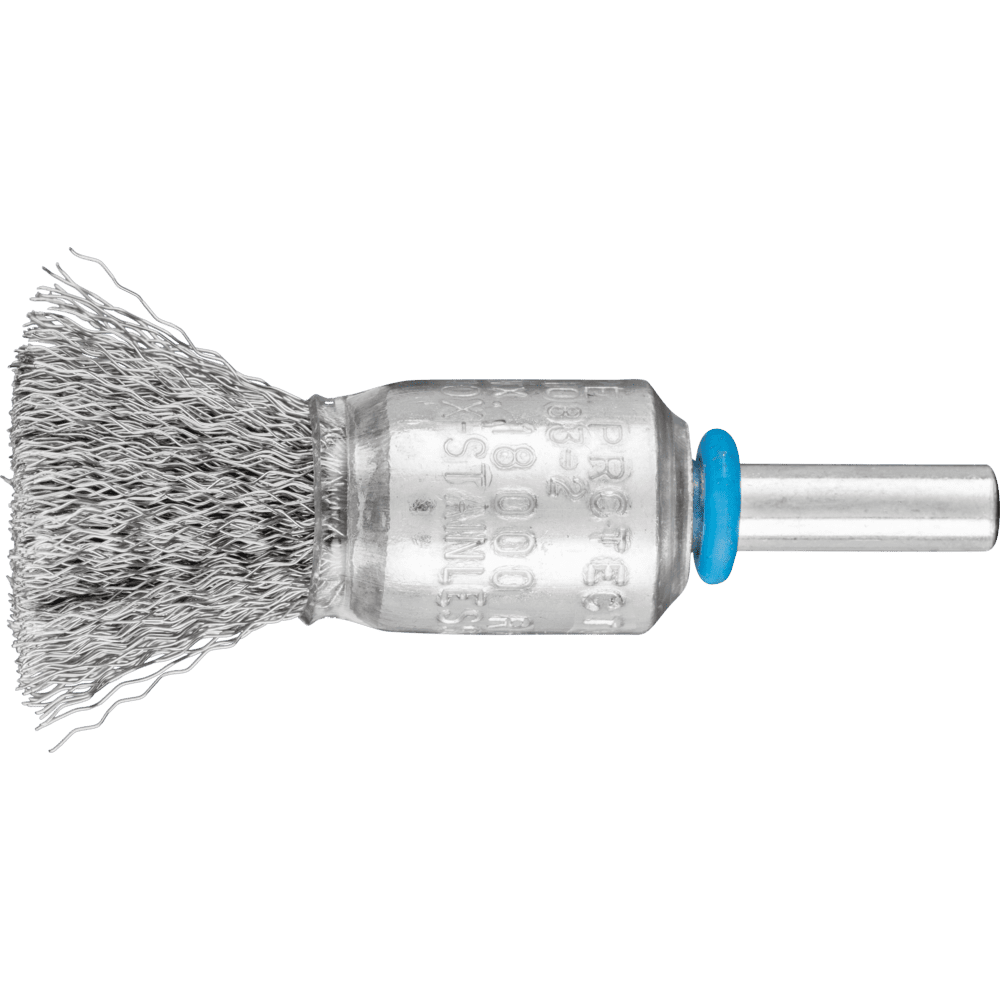

PFERD TOOLS Štandardné nasadené koncové kefy POS PBU 1516/6 INOX 0,20

Suitable for light brushing such as deburring, cleaning and derusting. End brush with plastic-covered brush body. In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Technical details

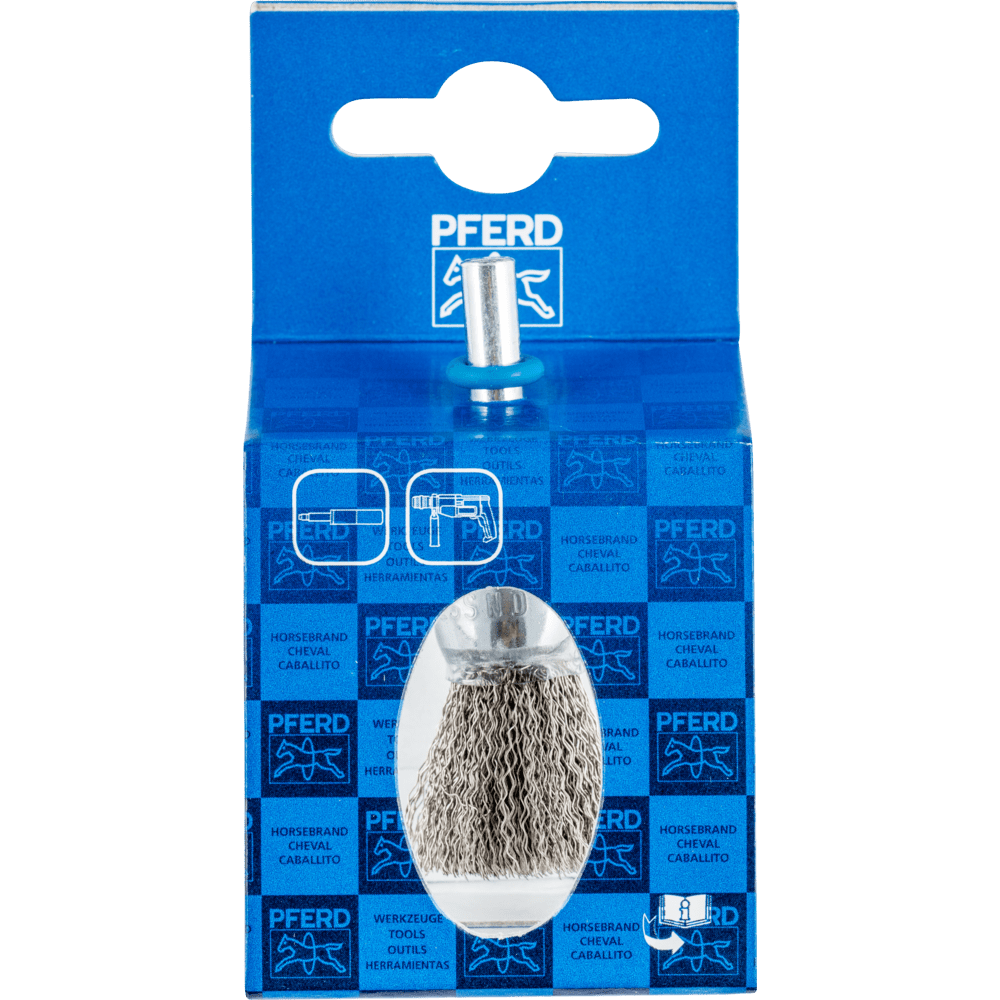

• Packaging: POS packaging
• PFERD TOOLS type: POS PBU 1516/6 INOX 0,20
• Max. RPM: 18000 RPM
• RPM, optimum, from: 7200 RPM
• RPM, optimum, to: 11700 RPM
• EAN pcs.: 4007220248898
• Mounting system: Shank
• Dia. cup: 16 mm
• Dia. filament material: 0.2 mm
• Dia. external, metric: 15 mm
• Dia. shank, metric: 6 mm
• Filament material: Stainless steel wire (INOX)
• Length, filament: 22 mm
• Length, total: 65 mm

Product benefits

• Advantages:
  • Very good corrosion resistance.
  • Creates fine surfaces.
  • The brush is degreased and does not leave any oil residue on the workpiece.
  • Optimal access to hard-to-reach areas such as drilled holes and cavities as the filament spreads out upon rotation.
  • The plastic covering prevents the risk of corrosion.

Application Recommendations

• Recommendations for use:
  • Please observe the recommended rotational speeds.
  • For the best results, use a tool drive with a minimum output of 300 watts.

Materials

• Materials that can be worked:
  • Aluminium
  • Bronze
  • Cobalt-based alloys
  • Hard non-ferrous metal
  • High-temperature-resistant materials
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Nickel or titanium-based superalloys
  • Other non-ferrous metals
  • Soft titanium alloys (tensile strength 500 N/mm²)
  • Stainless steel (INOX)
  • Titanium
  • Titanium alloys

Applications

• Applications:
  • Cleaning
  • Deburring
  • Derusting
  • Removing heat discolouration
  • Removing oxide layers
  • Paint stripping
  • Roughening

Drive types

• Drive types:
  • Flexible shaft drive
  • Power drill
  • Straight grinder

Safety notes

• Safety notes: When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This applies in particular for use in the high rotational speed range. The minimum clamping length is 10 mm.

Logistic details

• Customs tariff no.: 96035000
• Country of origin: US
• Volume (Packaging unit): 2580 CCM
• Gross weight (Piece): 0.051 kg
• Length (Packaging unit): 260 mm
• Width (Packaging unit): 136 mm
• Height (Packaging unit): 73 mm

Classifications

• ECLASS 5.1.4: 21011308
• ECLASS 7.1: 21043604
• ECLASS 8.1: 21043604
• ECLASS 9.1: 21043604
• ECLASS 10.1: 21043604
• ECLASS 11.1: 21043604
• ECLASS 12.0: 21043604
• ECLASS 13.0: 21043604
• ECLASS 14.0: 21043604
• ECLASS 15.0: 21043604
• ETIM 8.0: EC002234
• ETIM 9.0: EC002234
• ETIM 10.0: EC002234
• UNSPSC 25.0901: 27111907
