PFERD TOOLS POLICAP PC WRC 0511 CO-COOL 120

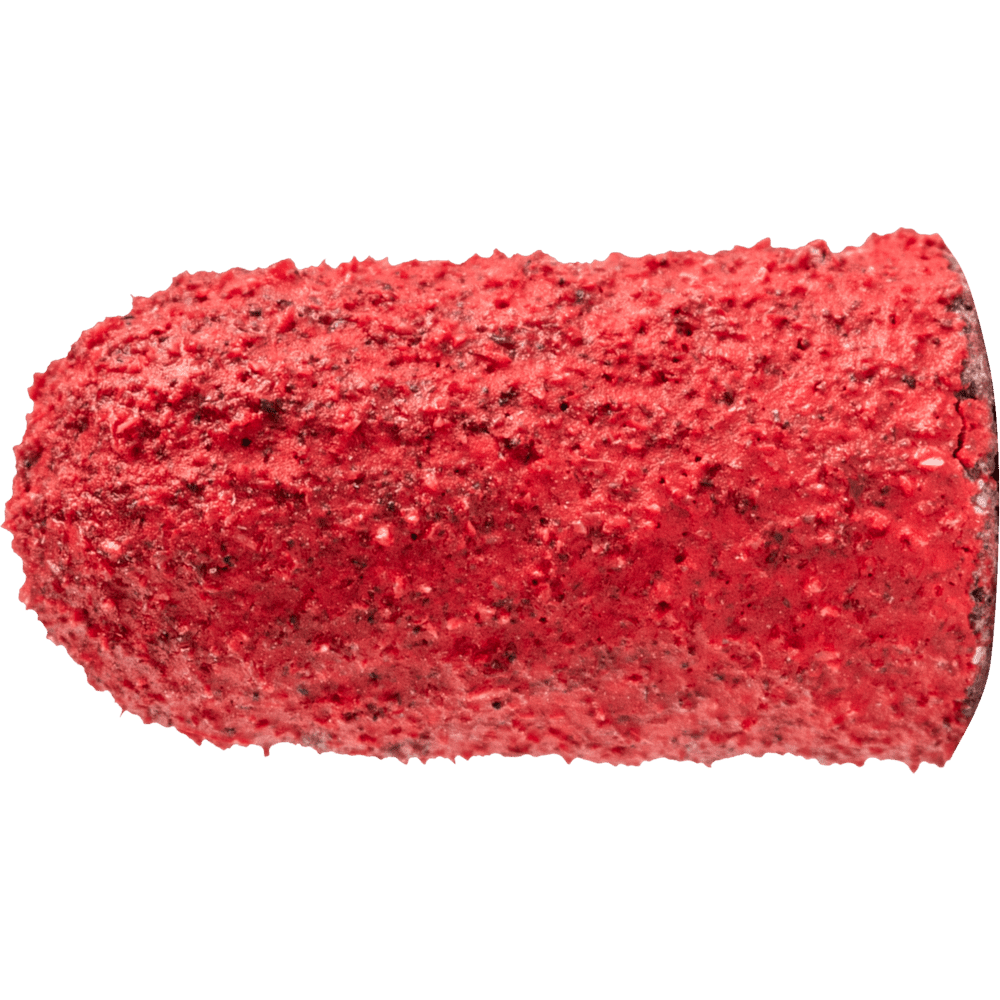

POLICAP abrasive caps in cylindrical shape with radius end WRC (previously shape C). POLICAP tools have a seamless design and the entire tool surface can be used. Due to the special structure of the ceramic oxide grain and the active-grinding bond components, ideally suited to working on stainless steels (INOX), as well as the high-temperature-resistant nickel-based and cobalt-based alloys that are frequently used in turbine construction, such as Inconel, Hastelloy. The active-grinding additives prevent clogging and facilitate cooler grinding with a considerably higher stock removal rate. Colour code for ceramic oxide grain CO-COOL = red

Technical details

• RPM, optimum: 40000 RPM
• EAN pcs.: 4007220318713
• Abrasive: CO-COOL
• Dia. external, metric: 5 mm
• Grit size: 120
• Height: 11 mm

Product benefits

• Advantages:
  • The abrasive caps and abrasive spiral bands are firmly held in place on the holder as the holder expands during use.
  • Good dimensional stability and excellent fine grinding thanks to special manufacturing process.
  • Easy tool change.

Application Recommendations

• Recommendations for use:
  • To easily change the abrasive caps and abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the arbor clamped in the tool drive and attach.
  • For the best results, use at a recommended cutting speed of 10-20 m/s.

Materials

• Materials that can be worked:
  • Annealed cast iron
  • Bronze
  • Cobalt-based alloys
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC

Applications

• Applications:
  • Step-by-step fine grinding
  • Leveling
  • Surface work

Drive types

• Drive types:
  • Flexible shaft drive
  • Straight grinder

Safety notes

• Safety notes:
  • The maximum permitted peripheral speed is 25 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Logistic details

• Customs tariff no.: 68051000
• Country of origin: ES
• Volume (Packaging unit): 182.528 CCM
• Gross weight (Piece): 0.001 kg
• Length (Packaging unit): 92 mm
• Width (Packaging unit): 62 mm
• Height (Packaging unit): 32 mm

Classifications

• ECLASS 5.1.4: 21011318
• ECLASS 7.1: 21019207
• ECLASS 8.1: 21019207
• ECLASS 9.1: 21019207
• ECLASS 10.1: 21019207
• ECLASS 11.1: 21011301
• ECLASS 12.0: 21011301
• ECLASS 13.0: 21011301
• ECLASS 14.0: 21011301
• ECLASS 15.0: 21011301
• ETIM 8.0: EC002196
• ETIM 9.0: EC002196
• ETIM 10.0: EC002196
• UNSPSC 25.0901: 31191504
