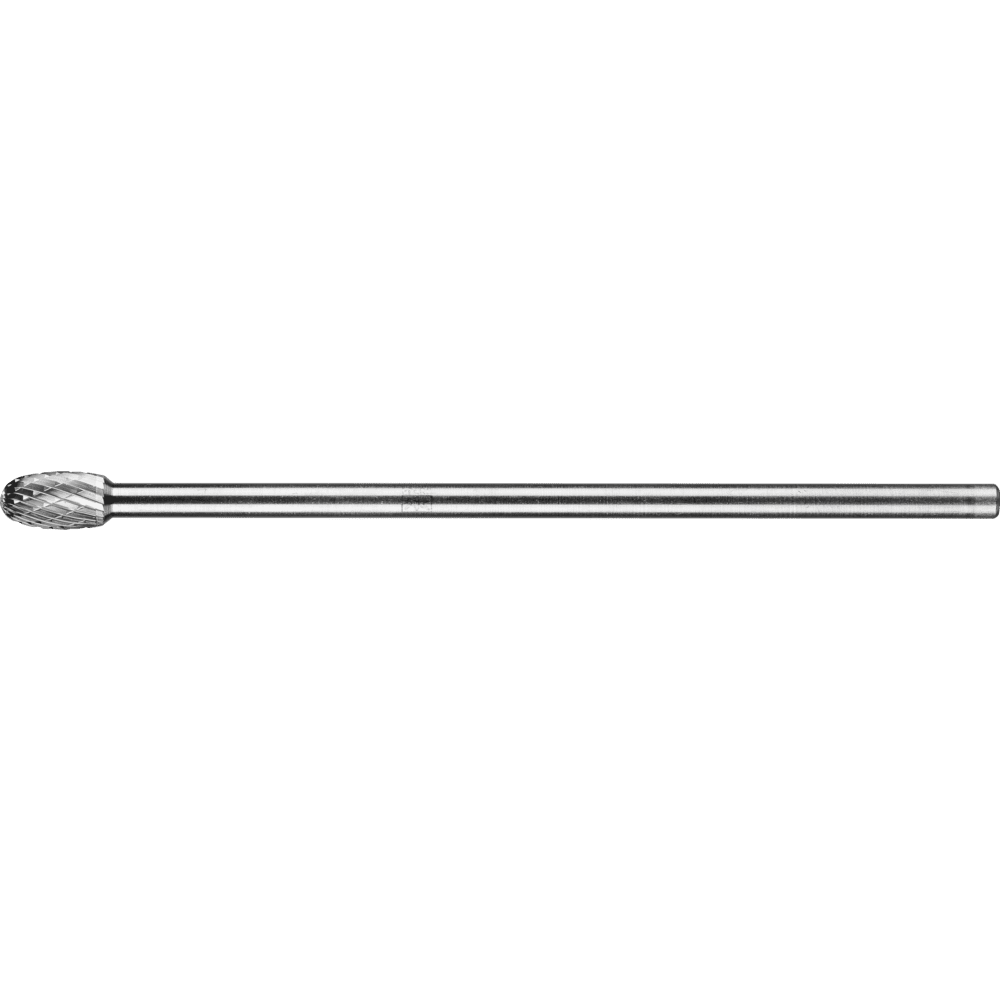

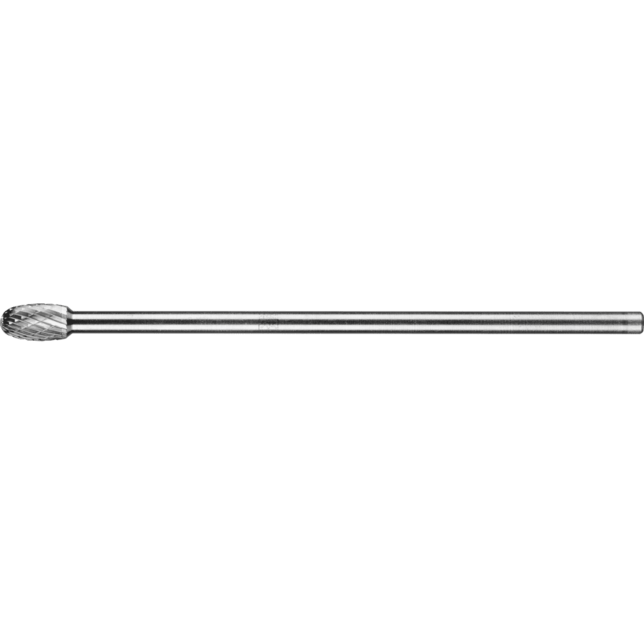

PFERD TOOLS Karbidové frézy TRE 1016/6 Z3 PLUS SL 150

Cut 3 PLUS is cross cut and especially well-suited to machining of cast iron, steel, stainless steel (INOX), nickel-based alloys and titanium alloys. It is characterized by its high stock removal rate. Tungsten carbide burrs for general applications are suitable for fine and coarse stock removal on the key materials used in industrial manufacturing. They provide a good stock removal rate and are not specific to a particular material. Oval burr according to DIN 8032 with cut conforming to DIN 8033. Tungsten carbide burrs with a long shank are ideal for efficiently machining small, hard-to-reach areas of components. They can be shortened if required. This version has a long steel shank.

Technical details

• Radius corner design: 4 mm
• RPM to, grey cast iron, white cast iron: 9000 RPM
• RPM to, hardened, heat-treated steels over 1,200 N/mm²: 9000 RPM
• RPM to, soft non-ferrous metals: 9000 RPM
• RPM to, steels up to 1,200 N/mm²: 9000 RPM
• Cut: 3 PLUS
• Dia. external, metric: 10 mm
• Dia. shank, metric: 6 mm
• Length, cut: 16 mm
• Length, total: 166 mm

Product benefits

• Advantages:
  • Good stock removal rate through optimum matching of tungsten carbide, geometry, cut and available coating.
  • Long tool life.
  • The highly accurate concentricity enables impact­free working without creating chatter marks. This considerably reduces wear on the tool and tool drive.
  • High surface quality.

Application Recommendations

• Recommendations for use: To ensure cost­effective use of burrs, use a higher rotational speed and cutting speed. Use burrs with a shank diameter of 6 mm with drives with a power output from 300 watts.

Materials

• Materials that can be worked:
  • Annealed cast iron
  • Black annealed cast iron (GTS, GJMB)
  • Case-hardened steels
  • Cast iron
  • Cast steel
  • Cobalt-based alloys
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Hard aluminium alloys
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • High-temperature-resistant materials
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Steel
  • Steel, cast steel
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Steels over 700 N/mm² (> 220 HB)
  • Steels up to 700 N/mm² (< 220 HB)
  • Tool steels
  • White annealed cast iron (GTW, GJMW)

Applications

• Applications:
  • Cutting out holes
  • Deburring
  • Leveling
  • Milling
  • Milling out
  • Surface work
  • Work on weld seams

Drive types

• Drive types:
  • Flexible shaft drive
  • Tool machine
  • Robot
  • Stationary machines
  • Straight grinder

Safety notes

• Safety notes:
  • For safety reasons, the maximum rotational speeds with contact with the workpiece require a reduction in the recommended speed of tungsten carbide burrs with standard shanks. Observe the product information included.
  • When working with long shank lengths, it is crucial that the tool is in contact with the workpiece (or inserted in the bore or slot to be machined) before the drive system is turned on. As a rule, the tool must remain in contact with the workpiece for as long as the machine is running. Failure to observe this procedure may result in burr failure (bending) and hence an increased risk of accidents. If continuous contact between the tool and the workpiece is not guaranteed during use, the maximum idling speeds must not be exceeded.
  • Not suitable for robotic or stationary applications. Risk of bending. Use only rigid clamping systems/drives.

Logistic details

• Customs tariff no.: 82077010
• Country of origin: DE
• Volume (Packaging unit): 36.703 CCM
• Gross weight (Piece): 0.054 kg
• Length (Packaging unit): 127 mm
• Width (Packaging unit): 17 mm
• Height (Packaging unit): 17 mm

Classifications

• ECLASS 5.1.4: 21010504
• ECLASS 7.1: 21180609
• ECLASS 8.1: 21180609
• ECLASS 9.1: 21180609
• ECLASS 10.1: 21180613
• ECLASS 11.1: 21180613
• ECLASS 12.0: 21180609
• ECLASS 13.0: 21180609
• ECLASS 14.0: 21180609
• ECLASS 15.0: 21180609
• ETIM 8.0: EC004535
• ETIM 9.0: EC004535
• ETIM 10.0: EC004535
• UNSPSC 25.0901: 27110000
