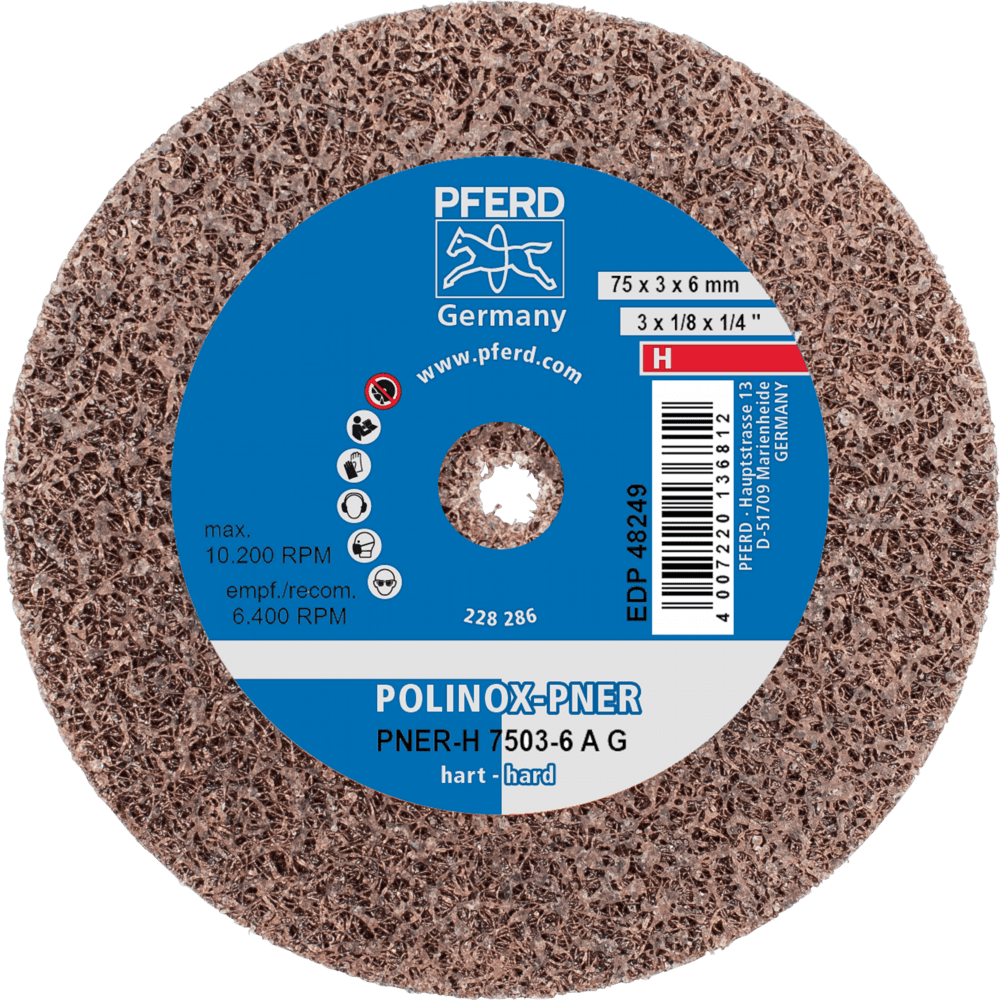

PFERD TOOLS Fleece vrstvené (netkané) náradie PNER-H 7503-6 A G

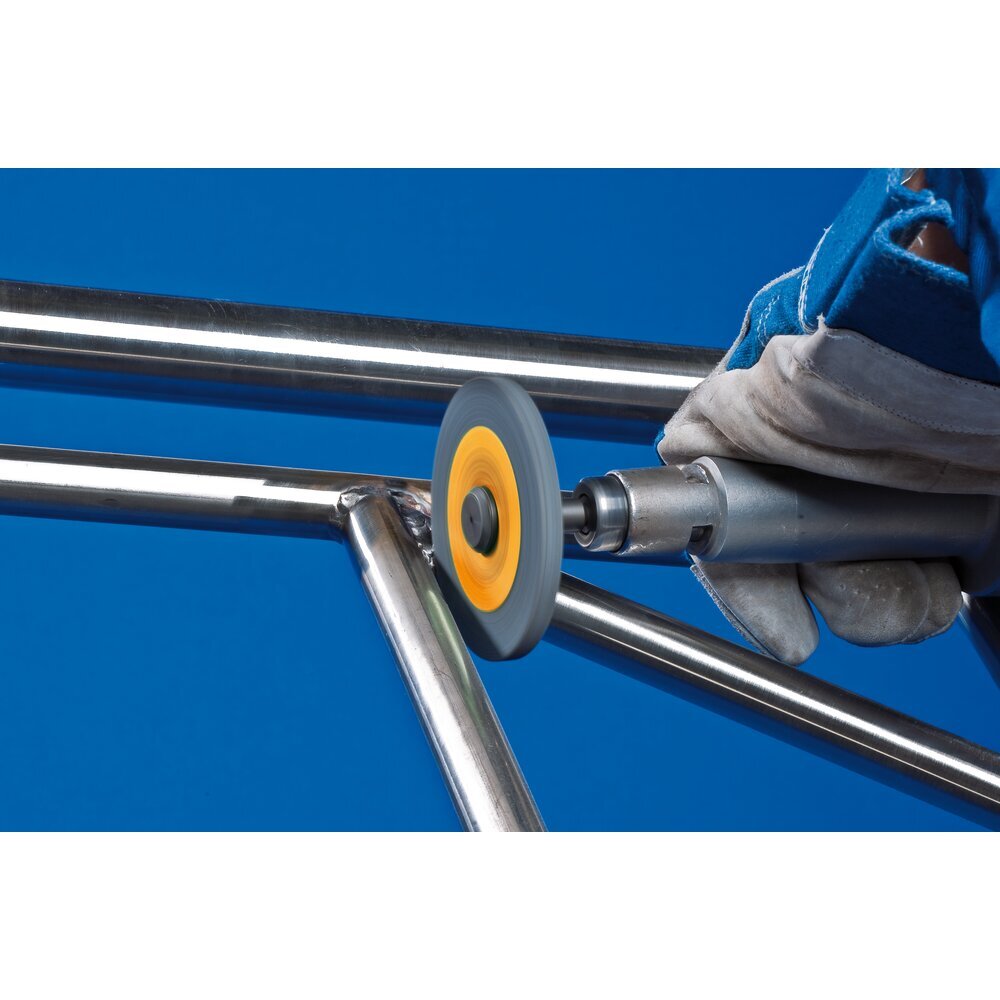

POLINOX unitized wheels PNER consist of multiple heavily compressed, non-woven layers, which are bonded together by a special grain/resin system. The different combinations of compression, fibres, grain and the appropriate bond results in non-woven products that offer a very good surface finish, high stock removal rate and long tool life. These tools can be used for a wide range of work on surfaces, from relatively coarse grinding to preparing the surface for polishing. The version for straight grinders, flexible shafts and bench grinders is particularly suitable for working on smaller surfaces. Hard version with very high stock removal rate, good edge strength and long tool life for tough deburring and polishing applications.

Technical details

• Max. RPM: 10200 RPM
• RPM, optimum: 6400 RPM
• Version: H (hard)
• EAN pcs.: 4007220303313
• Width, metric: 3 mm
• Abrasive: Aluminium oxide A
• Dia. hole: 6 mm
• Dia. external, metric: 75 mm
• Grit size: coarse

Product benefits

• Advantages:
  • High economic efficiency due to high abrasive performance and long tool life.
  • Produces very good surface quality.
  • Can be profiled as desired, enabling optimal adjustment to the contour.

Application Recommendations

• Recommendations for use:
  • Considerably reduce cutting speed for work on materials with poor heat-conducting properties, e.g. titanium and stainless steel.
  • For the best results, use at a recommended cutting speed of 15-30 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.

Materials

• Materials that can be worked:
  • Aluminium
  • Brass
  • Bronze
  • Cast steel
  • Cobalt-based alloys
  • Copper
  • Fibre-reinforced thermosetting plastics (GRP, CRP)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Thermoplastics
  • Titanium
  • Titanium alloys
  • Zinc

Applications

• Applications:
  • Cleaning
  • Deburring
  • Step-by-step fine grinding
  • Roughening
  • Structuring (matt finishing, brush matting and satin finishing)
  • Surface work

Drive types

• Drive types:
  • Flexible shaft drive
  • Straight grinder

Safety notes

• Safety notes: For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

PFERDVALUE

• PFERD TOOLS ERGONOMICS: PFERD TOOLS ERGONOMICS recommends POLINOX unitized wheels PNER to sustainably reduce the vibration, noise and dust produced during use and to improve comfort when working.

Logistic details

• Customs tariff no.: 68053000
• Country of origin: DE
• Volume (Packaging unit): 363 CCM
• Gross weight (Piece): 0.019 kg
• Length (Packaging unit): 82 mm
• Width (Packaging unit): 82 mm
• Height (Packaging unit): 54 mm

Classifications

• ECLASS 5.1.4: 21011390
• ECLASS 7.1: 21011390
• ECLASS 8.1: 21011390
• ECLASS 9.1: 21011390
• ECLASS 10.1: 21011349
• ECLASS 11.1: 21011349
• ECLASS 12.0: 21011349
• ECLASS 13.0: 21011349
• ECLASS 14.0: 21011349
• ECLASS 15.0: 21011349
• ETIM 8.0: EC002196
• ETIM 9.0: EC002196
• ETIM 10.0: EC002196
• UNSPSC 25.0901: 31191506
