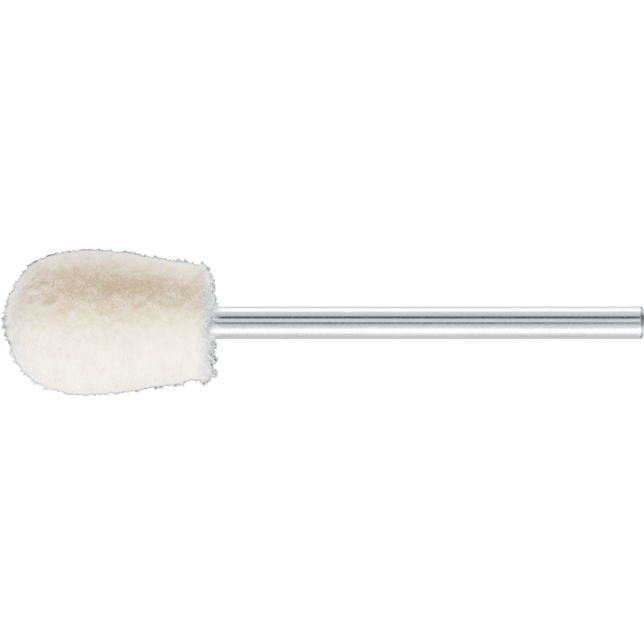

PFERD TOOLS Filcové náradie FK TRE 1014/2,35 M

Due to their hardness and flexibility, felt points are used when the exact form of geometric shapes has to be maintained. The oval shape TRE is mainly used for work on small radii.

Technical details

• Max. RPM: 47500 RPM
• RPM, optimum, from: 10000 RPM
• RPM, optimum, to: 20000 RPM
• Shape: Drops
• Version: M (medium)
• EAN pcs.: 4007220279014
• Width, metric: 14 mm
• Dia. external, metric: 10 mm
• Dia. shank, metric: 2.35 mm
• Length, shank: 35 mm

Product benefits

• Advantages:
  • Can be profiled as desired, meaning they can also be used for tools with complex geometries.
  • Precise retention of geometric shapes due to the hardness of these tools.

Application Recommendations

• Recommendations for use:
  • For the best results, use at a recommended cutting speed of 5-10 m/s. This provides an ideal compromise between stock removal rate, surface quality, thermal load on the workpiece and tool wear.
  • Use diamond polishing pastes and polishing paste bars.
  • When applying a different polishing paste, use a new unused polishing tool.

Materials

• Materials that can be worked:
  • Aluminium
  • Brass
  • Bronze
  • Cast steel
  • Cobalt-based alloys
  • Copper
  • Fibre-reinforced thermosetting plastics (GRP, CRP)
  • Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC)
  • Nickel-based alloys (e.g. Inconell and Hastelloy)
  • Stainless steel (INOX)
  • Steel materials with a hardness > 54 HRC
  • Steels up to 1,200 N/mm² (< 38 HRC)
  • Thermoplastics
  • Titanium
  • Titanium alloys

Applications

• Applications: Polishing

Drive types

• Drive types:
  • Flexible shaft drive
  • Straight grinder

Safety notes

• Safety notes: For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.

Logistic details

• Customs tariff no.: 59119010
• Country of origin: DE
• Volume (Packaging unit): 65.472 CCM
• Gross weight (Piece): 0.002 kg
• Length (Packaging unit): 62 mm
• Width (Packaging unit): 48 mm
• Height (Packaging unit): 22 mm

Classifications

• ECLASS 5.1.4: 21011390
• ECLASS 7.1: 21011390
• ECLASS 8.1: 21011390
• ECLASS 9.1: 21011390
• ECLASS 10.1: 21011390
• ECLASS 11.1: 21011390
• ECLASS 12.0: 21011390
• ECLASS 13.0: 21011360
• ECLASS 14.0: 21011360
• ECLASS 15.0: 21011360
• ETIM 8.0: EC003462
• ETIM 9.0: EC003462
• ETIM 10.0: EC003462
• UNSPSC 25.0901: 27110000
