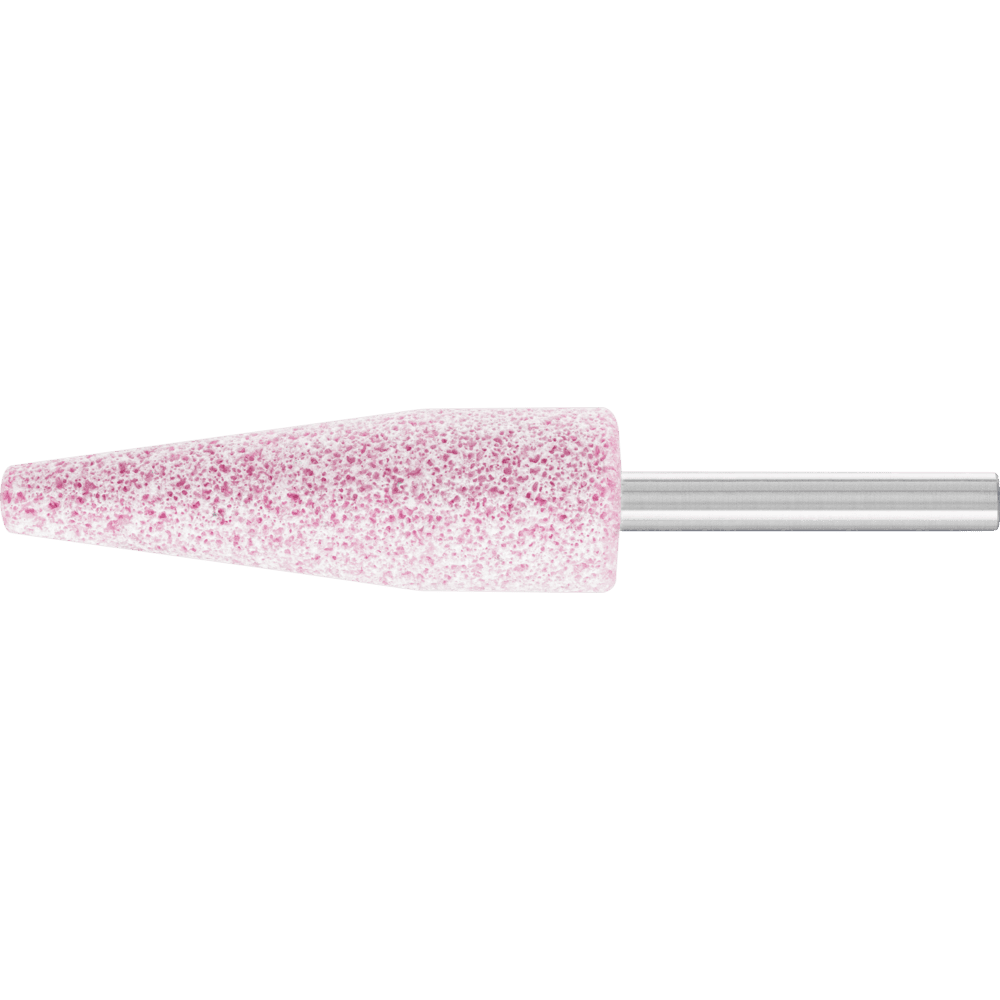

PFERD TOOLS brúsne telieska A 1 6,3 AR 30 O5V OCEĽOVÝ OKRAJ

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. Series A mounted points are generally used on larger components. Due to the special shapes, it is possible to grind in a variety of contours. The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing.

Technical details

• Max. RPM: 33500 RPM
• RPM, optimum: 33500 RPM
• Shape: A 1
• EAN pcs.: 4007220258088
• Width, metric: 64 mm
• Dia. external, metric: 19 mm
• Dia. shank, metric: 6.35 mm
• Grit size: 30
• Length, shank: 40

Product benefits

• Advantages:
  • Long tool life and low tool wear due to hard, dimensionally stable bond.
  • Economical to use due to the high edge stability even on low-speed tool drives.
  • Particularly well suited to work on edges.

Application Recommendations

• Recommendations for use: STEEL EDGE mounted points perform best at a cutting speed of 25 to 40 m/s.

Materials

• Materials that can be worked:
  • Cast steel
  • Steel

Applications

• Applications:
  • Deburring
  • Finishing
  • Grinding out
  • Grouting
  • Leveling
  • Surface work
  • Work on weld seams
  • Working on edges (chamfering, rounding)

Drive types

• Drive types:
  • Flexible shaft drive
  • Straight grinder

Safety notes

• Safety notes: The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.

Logistic details

• Customs tariff no.: 68042230
• Country of origin: DE
• Volume (Packaging unit): 816 CCM
• Gross weight (Piece): 0.048 kg
• Length (Packaging unit): 260 mm
• Width (Packaging unit): 157 mm
• Height (Packaging unit): 20 mm

Classifications

• ECLASS 5.1.4: 21011317
• ECLASS 7.1: 21011317
• ECLASS 8.1: 21011317
• ECLASS 9.1: 21011317
• ECLASS 10.1: 21011317
• ECLASS 11.1: 21011317
• ECLASS 12.0: 21011317
• ECLASS 13.0: 21011317
• ECLASS 14.0: 21011317
• ECLASS 15.0: 21011317
• ETIM 8.0: EC011937
• ETIM 9.0: EC011937
• ETIM 10.0: EC011937
• UNSPSC 25.0901: 27110000
